Optical fibers for UV-VIS spectral ranges

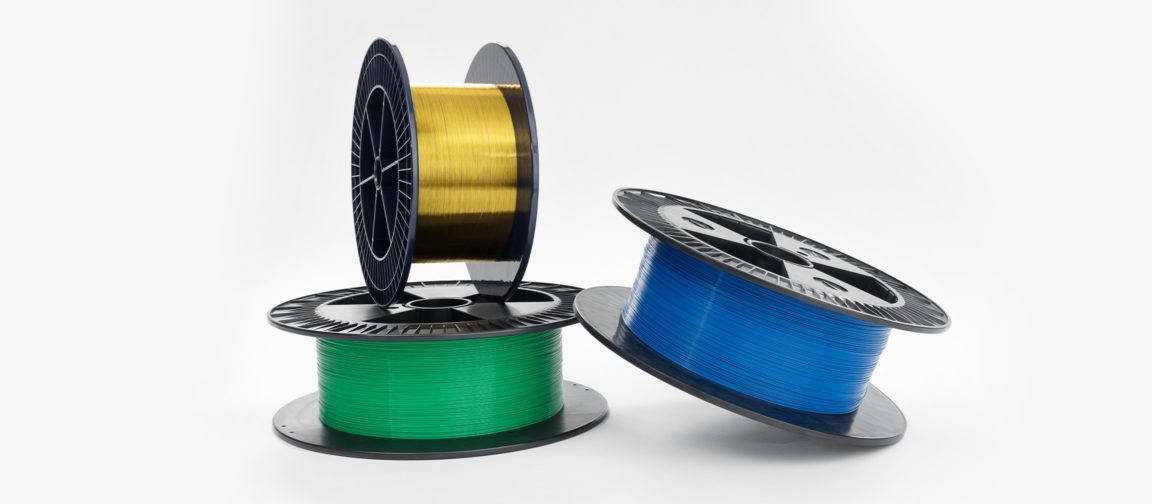

Silica/Silica Fibers
Optical fibers for UV-VIS spectral ranges

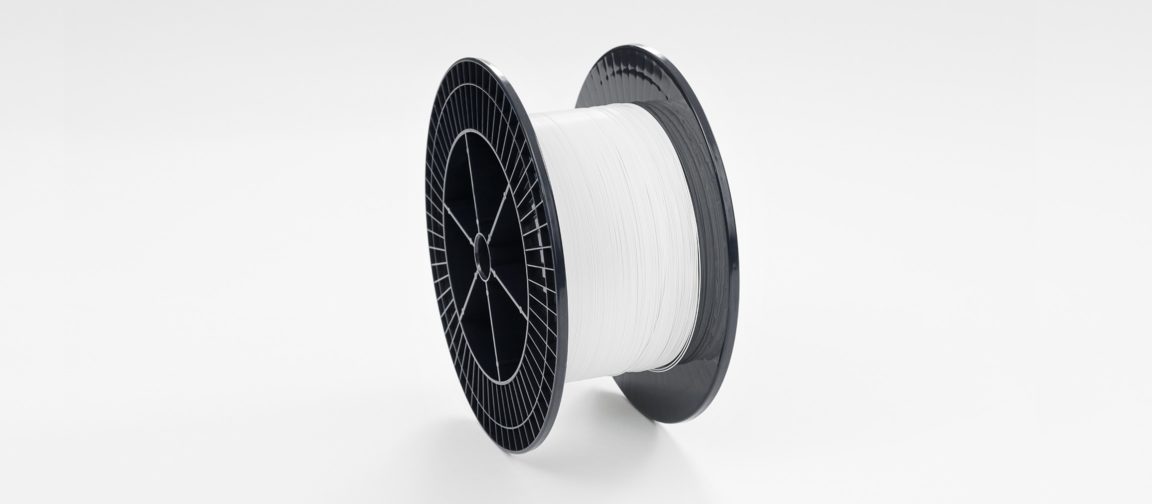

Polymer Clad Fibers
The cost-efficient alternative to quartz/quartz fibers


1. Synthetic quartz core High OH

Option: Solarization optimized
Core diameter: 50 µm to 2000 µm

Shapes

  • Circular (standard)
  • Non-circular
  • Rectangular (1:1 up to 1:3)
  • Hexagonal
  • Octagonal
  • Other

Available CCDRs

  • 1.05
  • 1.1
  • 1.2
  • 1.4
  • Custom

2. Reflecting Clad

  • F-doped silica
  • Polymer
  • Multi-cladding

Available NAs

  • Low 0.12 ± 0.02
  • Standard 0.22 ± 0.02
  • High 0.27 ± 0.02
  • Custom


3. Buffer

  • Hard clad (NA = 0.37 or 0.50)
  • Silicone clad (NA = 0.37)

4. Jacket

  • Polyimide (-190°C to +385°C)
  • Acrylate (-40°C to +85°C)
  • Nylon (-40°C to +100°C)
  • ETFE (-40°C to +150°C)
  • Others upon request

ZLUV, ZLDUV AND ZLDUVCH fiber
